10T/H Rotary Sand Drum Dryer Machine With Sieving Machine

Brand Name : MG

Model Number : MGS

Certification : CE ISO,ISO9001,ISO/CE/BV

Place of Origin : Zhengzhou City, Henan Province, China

MOQ : 20-25 working days after receiving the advance payment.

Price : USD 10000-30000/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Sets per month

Delivery Time : 25-30 working days after receiving the balanced payment.

Packaging Details : Wooden box packaging and bubble wrap packaging.

Type : Three Cylinder Rotary Drying Equipment

Capacity : 3-10t/h

Power : 45-100kw

Size : about 4*2500 mm

Application : Slag, limestone, Fly ash, clay drying

Heating source : wood, coal, gas

Material : Carbon Steel

Voltage : 220V, 380V or Customized

Warranty : 1 Year after loading

Contact Now

Energy Saving 3-10T/H Small Three Cylinder Rotary Sand Caco3 Clay Drum Dryer Machine

Brief Introduction of Three Cylinder Rotary Sand Dryers:

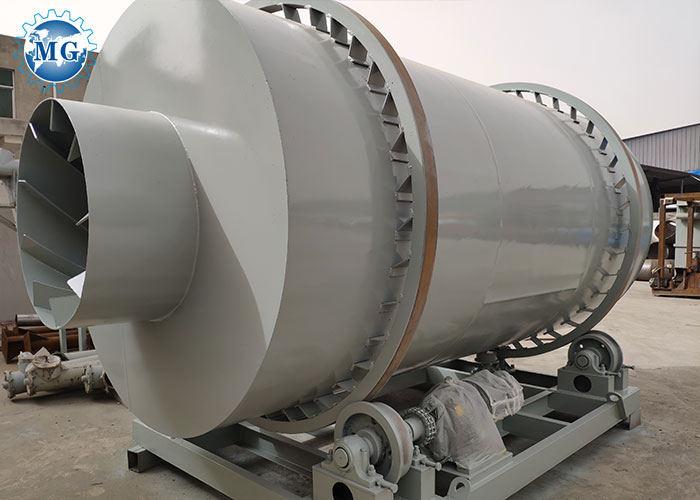

MG Three-cylinder Rotary Dryer is composed of three concentric cylinders with different diameters. The special three-cylinder structure makes the inner cylinder and the middle cylinder surrounded by the outer cylinder to form an own thermal insulation system. The heat emitted from the surface of the inner cylinder and the middle cylinder is involved in the heat exchange of the materials in the outer cylinder, and the outer cylinder is at the low temperature end of the hot gas flow, so the heat dissipation area and heat loss of the cylinder are significantly reduced. Energy-saving three-cylinder dryer can make full use of waste heat, reduce heat loss, increase the heat exchange area.

Flow Chart of Three Cylinder Rotary Sand Dryers:

10T/H Rotary Sand Drum Dryer Machine With Sieving Machine

Application of Three Cylinder Rotary Sand Dryers:

MG dryer is mainly used for drying river sand, yellow sand, silica sand, limestone, quartz sand, mechanism sand and various specifications of sand, slag, coal ash, clay and so on.

Damp and sticky material: Coal slime, sewage sludge, bentonite, Kaolin etc.
Corrosive material: Distillers ‘grains, Fertilizer, animal dung, slag etc.
Biomass material: Sawdust, wood chips etc.

10T/H Rotary Sand Drum Dryer Machine With Sieving Machine

Technical Parameters of Three Cylinder Rotary Sand Dryers:

Type of Three Pass Dryer	MGS623	MGS625	MGS6210	MGS6220
Drying capacity	3-5t/h	6-8t/h	10-15t/h	20-25t/h
Length	2200mm	2500mm	2700mm	5000mm
Diameter of drum	1750mm	2200mm	2600mm	2600mm
Motor powder	4kw	5.5kw	7.5kw*1	7.5kw*2
Reducer model	XWD-5	XWD-5	ZQ350	ZQ350*2
Speed of drum rotation	4-10r/min	4-10r/min	4-10r/min	4-10r/min
Moisture of end products	<1%	<1%	<1%	<1%
Max.temperature inside	700-750℃	700-750℃	700-750℃	700-750℃
Outlet temperature	60-80℃	60-80℃	60-80℃	60-80℃

Machine working site of Three Cylinder Rotary Sand Dryers:

10T/H Rotary Sand Drum Dryer Machine With Sieving Machine
